Portable CPR Device Life-saving precision,
ready in seconds
From hospital code blues to disaster rescue operations and ambulance transfers,
Lazaro delivers fast and continuous chest compressions without interruption
— enabling effective CPR in various emergency settings and increasing survival rates.
-
Why
we built thisHow
we solve it -
Manual CPR can suffer
from inconsistent hand placement.Lazaro ensures precise compression
at the optimal location every time. -
Survival rates are highly time-sensitive.
Lazaro enables rapid deployment
to help maximize the golden hour
and improve outcomes. -
As time passes, manual
compressions often weaken.Lazaro maintains consistent
and reliable compression pressure
throughout CPR.
-
Quick adjustment of compression position without reinstalling the device, using the Adjust handle.
-
Laser guide enables intuitive and precise placement, reducing setup time.
-
Rotating leg structure allows rapid deployment onto the patient.
-
Automatically adjusts compression depth based on patient’s chest height via SET button.
-
Up to 150 minutes of operation per charge, with simultaneous charging during CPR.
-
Modular compression unit adapts to various patient body types.
Specifications
- Patient Range: Chest height
- 120–315mm, width up to 500mm
- Compression Depth
- 50mm
- Dimensions
-
Mode
- CPR Mode: W560 × D260 × H640(mm)
- Carrying Mode: W560 × D260 × H452(mm)
- Runtime
- max. 150 minutes
- Battery Charging time
- 80 minutes
- Weight
- 8.5kg±10%
- Laser Guide
- Class II / 645nm / ≤1mW
- CPR Modes
- 30:2 / Continuous

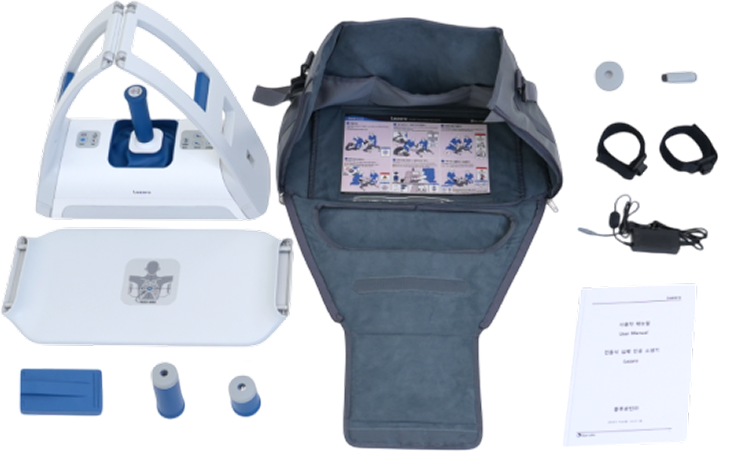

- ❶ Main Unitem
- ❷ Backplate
- ❸ Battery
- ❹ Extension Rod 1 (Long)
- ❺ Extension Rod 2 (Standard)
- ❻ Carrying Bag
- ❼ Compressor cover
- ❽ Battery Charging Connector
- ❾ Arm Restraint Straps
- ❿ Power Adapter and Power Cable
- ⓫ User Manual
